TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.

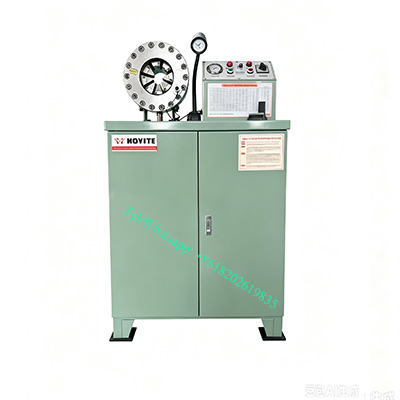

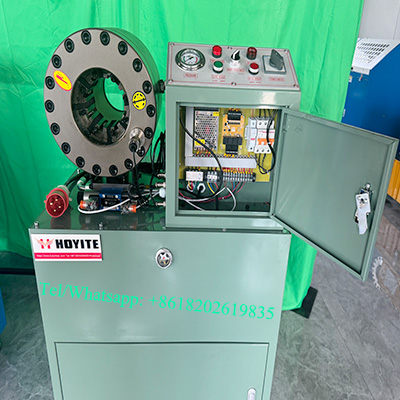

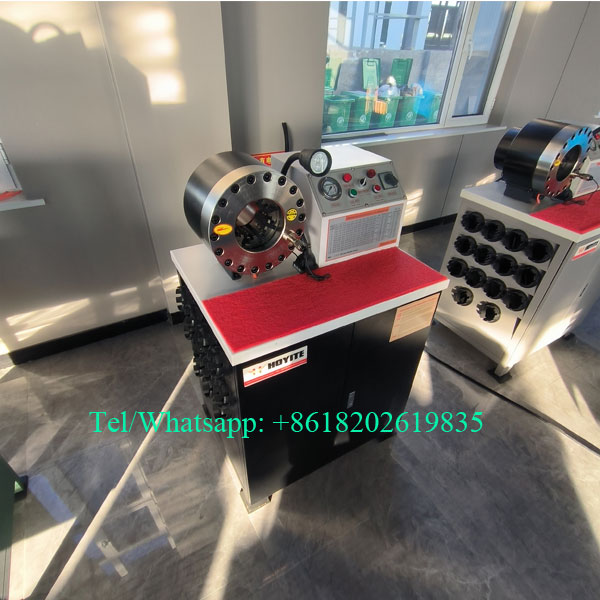

HYT-51G 2 Inch Hydraulic Hose Crimping Machine — Crimping range from 1/4" to 2", supplied with 10 sets of standard dies. Suitable for hydraulic hose assembly, repair, and workshop production.
In Stock & Ready to Ship | Fast Order Processing | Global Delivery
The HYT-51G is a 2-inch hydraulic hose crimping machine designed for workshops, hydraulic hose service centers, and hose manufacturers that need a practical solution for assembling hoses up to 2 inches. With a crimping range of 6–51 mm (1/4"–2") and 10 sets of standard dies, it covers a wide range of commonly used hydraulic hose sizes in one machine.
Its 500-ton crimping force and 31.5 MPa hydraulic system provide the working capacity required for high-pressure hydraulic hose assembly. The compact machine structure also makes the HYT-51G suitable for workshops where floor space and equipment flexibility are important.
For hydraulic hose businesses, one machine often needs to handle different hose sizes throughout the day. The HYT-51G is built around this requirement. Its 10 standard die sets cover hose sizes from 1/4" to 2", allowing operators to change between common hose specifications without using separate crimping equipment.
The machine is suitable for both hose production and replacement hose assembly, making it a useful choice for hydraulic repair shops, equipment maintenance companies, machinery manufacturers, and distributors supplying ready-made hydraulic hose assemblies.

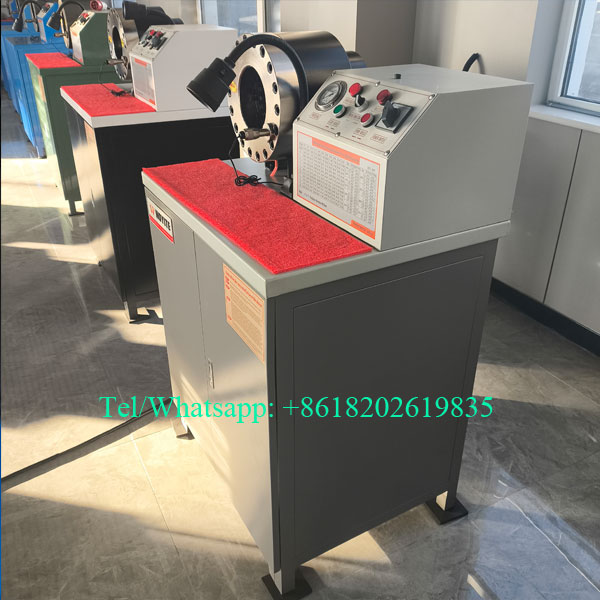

The HYT-51G covers a crimping range of 6–51 mm (1/4"–2"). The supplied die sets are arranged to cover frequently used hydraulic hose sizes:
15/16, 19, 23, 26, 31, 36, 41, 47, 55 and 60/63 mm
The 60/63 mm die is supplied as one die set, giving a total of 10 standard die sets.
This configuration gives operators a straightforward setup for handling different hose sizes in everyday hydraulic hose assembly work.

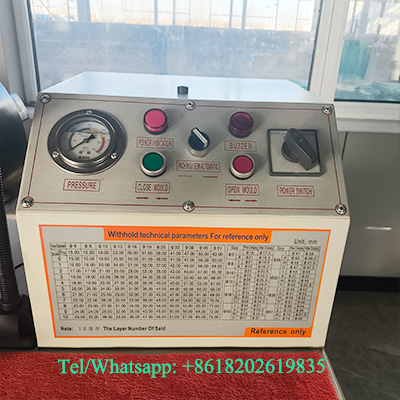

The HYT-51G uses a hydraulic system with a maximum system pressure of 31.5 MPa and a rated crimping force of 500 tons. This provides the force needed for assembling a broad range of high-pressure hydraulic hoses and fittings.
The hydraulic drive is designed for controlled hose crimping, helping operators maintain consistent results when processing different hose assemblies.

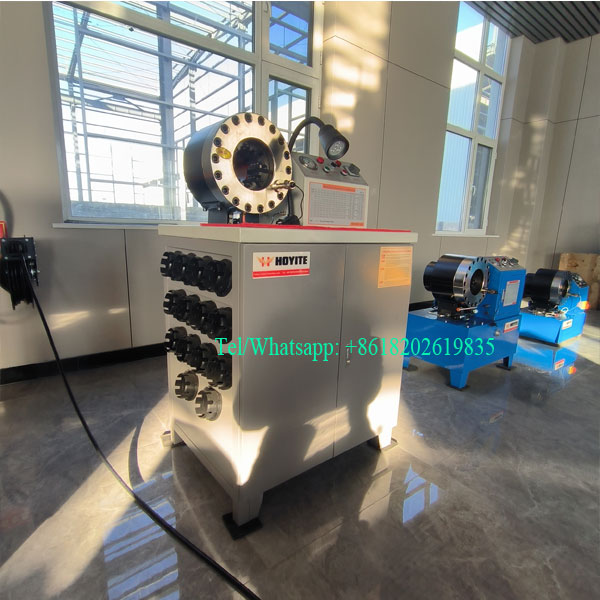

Choosing the right die configuration is important when a crimping machine is used for different hose sizes. The HYT-51G comes with 10 standard die sets, covering the machine's complete 1/4"–2" crimping range.
The dies are supplied with the machine, so users can begin working with common hydraulic hose sizes without having to build a separate die set from scratch.
The HYT-51G can be used in a variety of working environments, including:
Hydraulic hose repair workshops
Hose assembly and replacement services
Construction machinery maintenance
Agricultural equipment maintenance
Industrial machinery service
Hydraulic hose distributors
General equipment repair centers
For businesses that regularly make replacement hoses on demand, a 2-inch crimping machine can cover many of the hose sizes encountered in routine hydraulic maintenance.

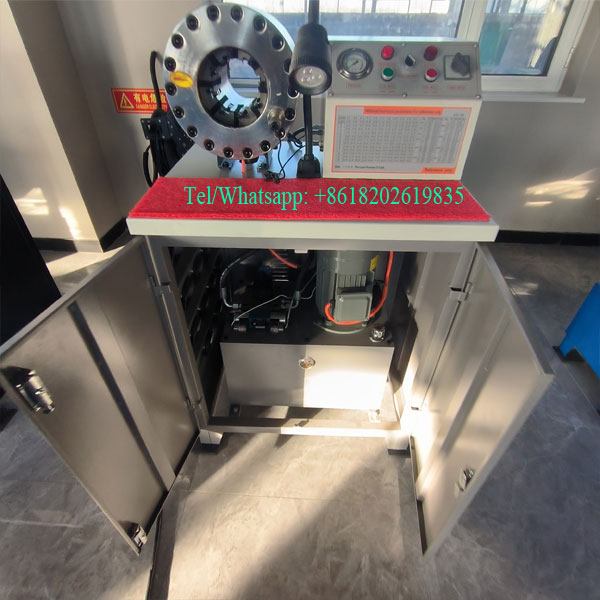

The HYT-51G is available with a 3 kW or 4 kW motor, with 220 V or 380 V voltage options. The appropriate configuration can be selected according to the customer's local electrical supply and machine requirements.
This makes the machine suitable for different workshop power environments while keeping the basic machine configuration straightforward.
With a net weight of approximately 310 kg and dimensions of 860 × 640 × 1300 mm, the HYT-51G provides a substantial working platform without becoming an oversized piece of workshop equipment.
Its configuration is aimed at businesses that need a dedicated hydraulic hose crimper for regular production, maintenance, and replacement hose assembly rather than occasional manual crimping.
| Item | Specification |
|---|---|
| Model | HYT-51G |
| Crimping Range | 6–51 mm (1/4"–2") |
| Crimping Force | 500 Ton |
| System Pressure | 31.5 MPa |
| Die Sets | 10 Sets |
| Die Sizes | 15/16, 19, 23, 26, 31, 36, 41, 47, 55, 60/63 mm |
| Motor Power | 3 kW / 4 kW |
| Voltage | 220 V / 380 V |
| Net Weight | 310 kg |
| Gross Weight | 326 kg |
| Dimensions | 860 × 640 × 1300 mm |
The value of a hose crimping machine is not only determined by its maximum crimping force. For everyday users, the working range, die configuration, machine size, power requirements, and ease of handling are equally important.
The HYT-51G combines a 1/4"–2" crimping range, 10 standard die sets, 500-ton crimping force, and a 31.5 MPa hydraulic system in one machine. This makes it a practical option for businesses that need to assemble and repair a variety of hydraulic hoses with one dedicated crimper.
The HYT-51G has a crimping range of 6–51 mm, equivalent to 1/4"–2".
The machine is supplied with 10 standard die sets, including a 60/63 mm die set.
The HYT-51G provides a maximum crimping force of 500 tons.
The machine can be configured with a 3 kW or 4 kW motor and 220 V or 380 V power according to the required configuration.
Yes. Its 1/4"–2" working range and 10 standard die sets make it suitable for hydraulic hose assembly, replacement, and repair applications.
Please contact HYT with your required voltage, frequency, and phase configuration before ordering so the machine can be prepared according to your local power supply.
If your application requires hoses larger than 2 inches, HYT also provides larger hydraulic hose crimping machines for 3-inch and 6-inch hose applications.
For larger hose assemblies, see our HYT-103B 3-inch hydraulic hose crimping machine and HYT-150L 6-inch 6S hose crimping machine.
Contact HYT for the recommended machine configuration, die selection, and quotation for your hose sizes.
