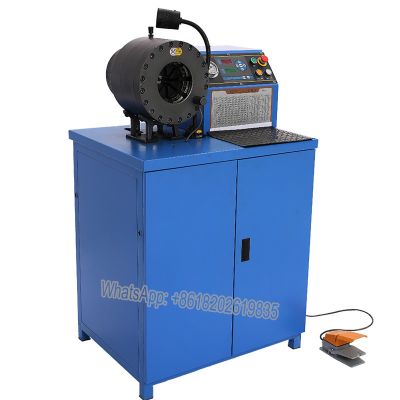

HYT-C91 2inches automatic crimping hydraulic machine

HYT-C91 2" automatic crimping hydraulic machine

The advantages of HYT-C91 2" automatic crimping hydraulic machine

• High speed and precision.
• Added die base resin gasket to protect the machine from debris dropping.
• Function: manual, semi-automatic and automatic.
• Die sets to be changed in axis position.

Hose capacity(max. inner diameter): 1/4" - 2" (4 wire)

Technical data :

Crimping range:1/4”-2”

Standard voltage and motor: 380V/3kW

Opening without dies: Φ122mm

Opening: ≥28mm

No. of standard die: 10 sets

Systematic pressure: 30MPa

Weight: 310Kg

Machine size: 800*630*1376mm

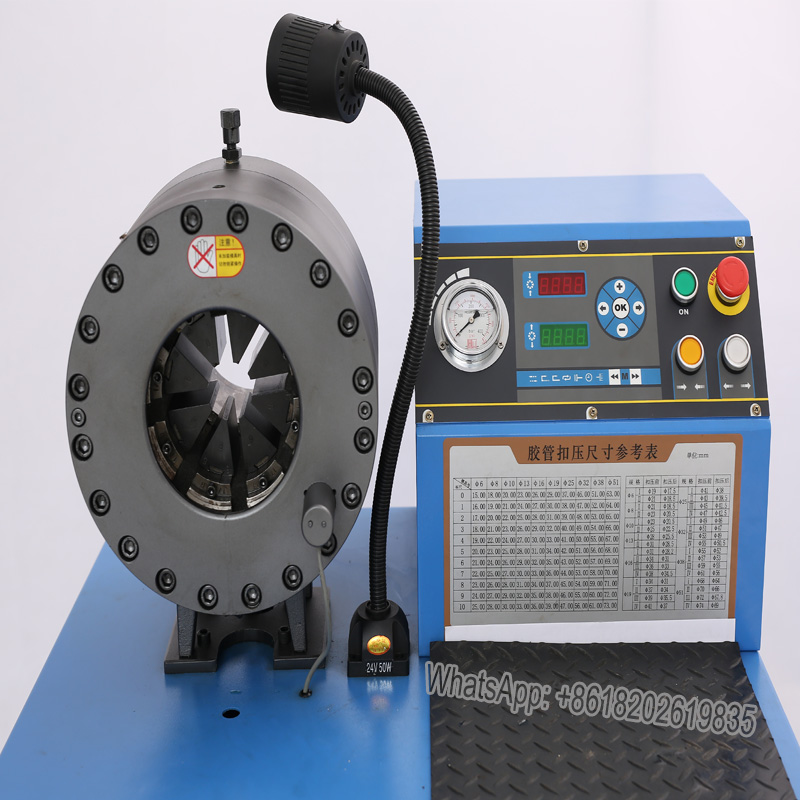

The crimping head of HYT-C91 2" automatic crimping hydraulic machine

The control panel of HYT-C91 2" automatic crimping hydraulic machine

The machine parts on machine

Automatic crimping hydraulic machine application:

• Automatic crimping hydraulic machine is essential wherever reliable, high strength electrical or mechanical connections for request:
• Electrical Industry: Crimping lug and ferrule with power cables (from small control wires to large high voltage cables).
• Telecommunications: Assemble coaxial cables and other communication lines.
• Mining and Construction: Prepare heavy duty hydraulic line and hoses for machinery and equipment.

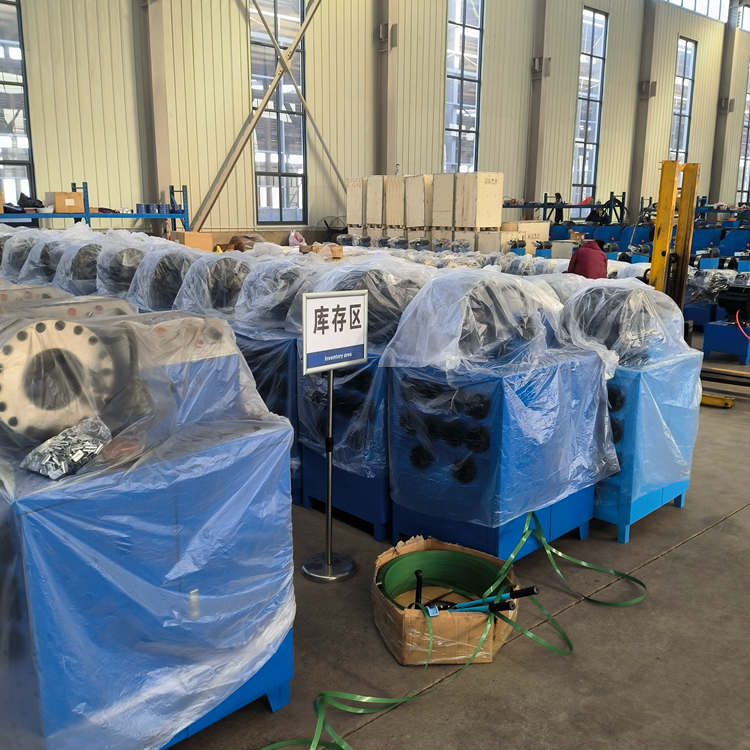

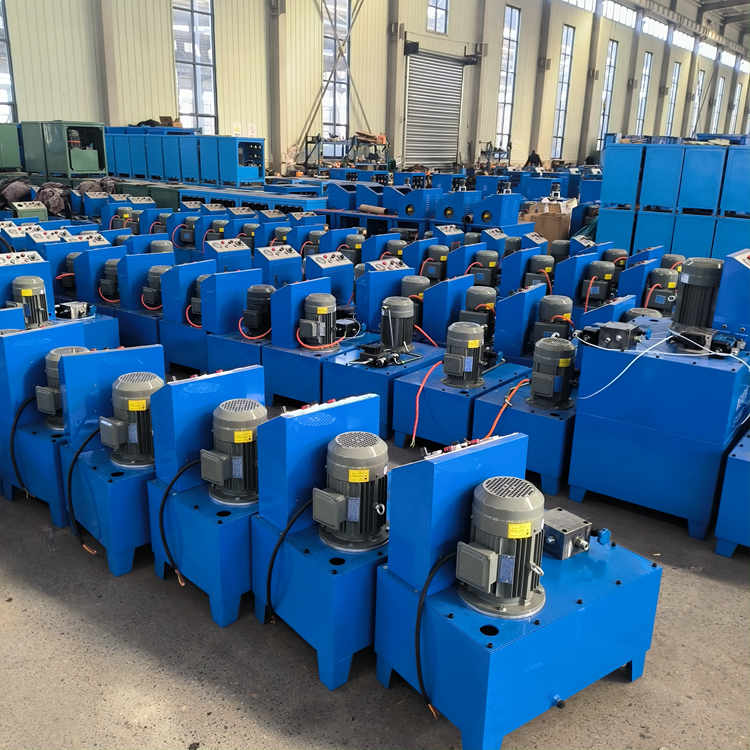

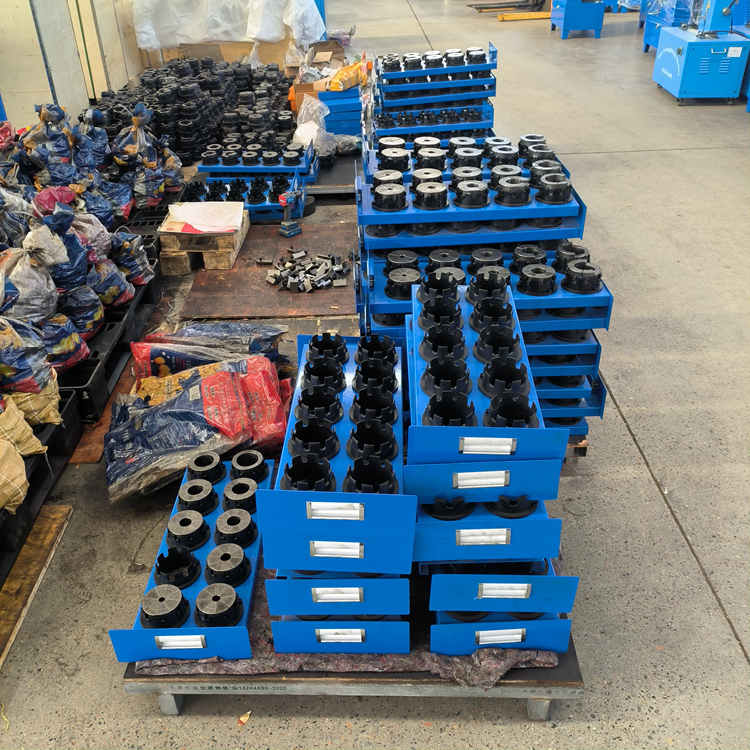

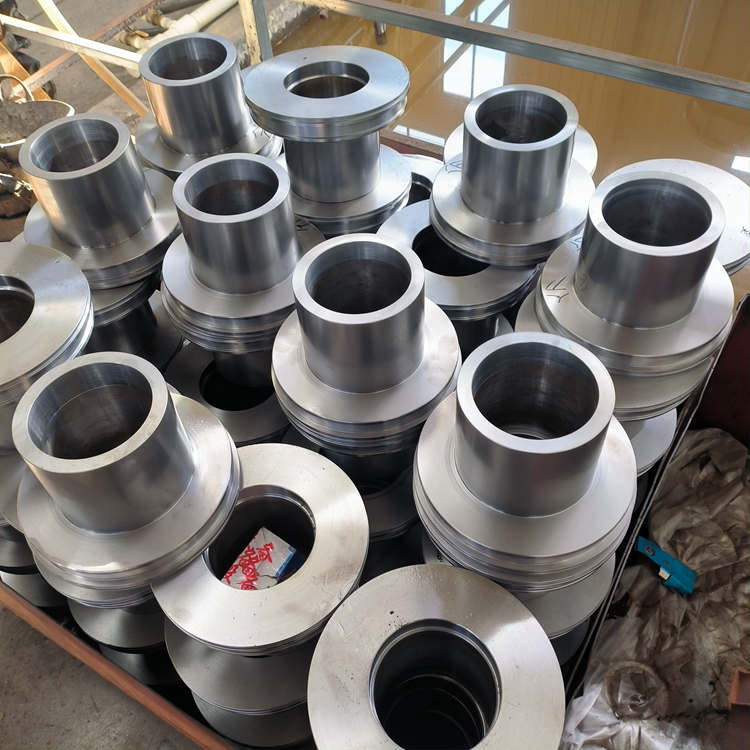

Factory show and know how to production automatic crimping hydraulic machine

We are hydraulic hose machinery manufacturer, our main products have hydraulic hose crimping machine, hose cutting machine, hose skiving machine and pressure testing machine and hose assembly machine. Following our factory and workshop show:

Additional Information:

Paymets Terms: T/T ( Bank transfer ), Western Union, Paypal , Credit Card, Online pay etc.

Port of Dispatch: Tianjin

Delivery Time: 7~10days

E-mail vitty@hythosecrimpingmachine.com

Tel/Wechat/WhatsApp: +8618202619835
