TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Technical parameter of
| Model | HYT-68 |
| Crimp force: | 500T |
| Hose capacity: | 1/4" - 2" (4 wire) |
| Free Die sets： | 1/4″ – 2″, 10sets |
| Max. Crimp range: | 87mm |
| Opening: | +30mm |
| Opening without dies: | 114m |
| Close Speed (mm/sec.): | 6s |
| Crimp Speed (mm/sec.): | 2.3 |
| Open Speed (mm/sec.): | 8.2s |
| Voltage: |
220V/380V |
| Power: |
3KW/4KW |
| Machine (mm): |
730*480*740mm |
| Weight: | 250kg |
Standards Dies
| Master Dia. | 15/16 | 19 | 23 | 26 | 31 | 36 | 41 | 47 | 55 | 63 |
| crimp range(mm) | 15-19 | 19-23 | 23-26 | 26-31 | 31-36 | 36-41 | 41-47 | 47-55 | 55-60 | 60-63 |
| Lenght (mm) | 60 | 60 | 60 | 60 | 70 | 70 | 70 | 70 | 80 | 80 |

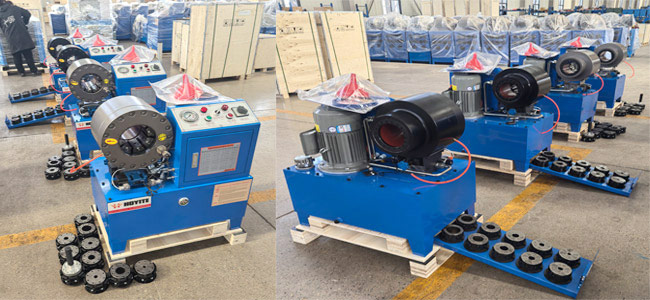

Feature of HYT-68 hose crimping machine with quick change tool
One-piece forging head. Front housing cover, cylinder and piston rod use CR material to improve fatigue resistance.
Quick change tool: Can quickly replace mold, reduce time waste and boost work efficiency.
Foot Pedal: Frees hands, improves efficiency, clean and sanitary.
Micrometer: Interchangeable with finn power style machine, high accuracy.
World famous brand motor system, more powerful.
Addition information
Paymets Terms: T/T ( Bank transfer ), Western Union, Paypal , Credit Card, Online pay etc.
Delivery method: wooden case package ; By sea to any port .
Production Capacity: 200 sets per month
Delivery Time: 3~7 days
