High-Precision Economic Hydraulic Hose Press Machine: Ergonomic, Fast & Factory-Direct
When managing a busy workshop or optimizing a hose assembly production line, balancing operational efficiency, equipment durability, and capital cost is critical. The HOYITE Economic Hydraulic Hose Press Machine is engineered specifically for hose distributors, repair shops, and industrial equipment OEMs who demand high precision without overextending their machinery budget. As a best-selling model in our heavy-duty processing lineup, this machine bridges the gap between affordable capital investment and continuous industrial performance.
Ergonomic Dual-Operation Design: Squatting or Standing Workflow
Traditional hose press machines often force operators into fixed, uncomfortable positions during long production shifts, leading to worker fatigue and reduced output accuracy. Our economic hydraulic hose press machine resolves this with a flexible, operator-first design.
- Base Compact Setup (Squatting/Benchtop Mode): In its standard form, the machine features a low center of gravity and a compact footprint, allowing technicians to comfortably operate in a seated or squatting position on shop floors with limited vertical space or inside mobile repair units.
- Optional Stand Frame (Standing Ergonomics): For high-volume assembly lines and dedicated hydraulic workshops, an optional, reinforced structural steel stand transforms the unit into an upright, eye-level workstation. Operators can execute repetitive swaging cycles while standing upright, significantly reducing back strain and boosting hourly yield.
Optional Quick-Change Tool System: Minimize Setup Downtime
In modern hydraulic hose manufacturing, downtime during die changes directly erodes profitability. While standard manual die replacement requires time-consuming bolt handling, our machine offers an optional Quick-Change Tool (QCT) Rack & Gun System.
- One-Step Die Installation: Swap complete 8-piece die sets simultaneously within seconds using the ergonomic die holder gun.
- Zero Alignment Mistakes: Eliminates misplaced die segments, ensuring equal radial force distribution across every crimped coupling.
- Enhanced Operator Safety: Prevents hand pinch hazards and reduces direct contact with heavy, lubricated die surfaces.
Technical Specifications & Performance Metrics
| Parameter | Performance Standard |
|---|---|
| Swaging / Crimping Range | 1/4" to 2" (Inner Diameter), Up to 4-Spiral Wire Hoses |
| Operation Modes | Low-Profile Benchtop (Squatting) / Upright Stand Mount (Standing) |
| Die Swap System | Standard Manual Pin Lock / Optional Quick Change Tool (QCT) |
| Control Method | Precision Micrometer Adjustment Dial with Automatic Stop |
| Power Options | Single Phase / Three Phase / Customized Voltage Inputs |
| Certifications | CE Certified, ISO 9001 Quality Compliant |
Operating Instructions

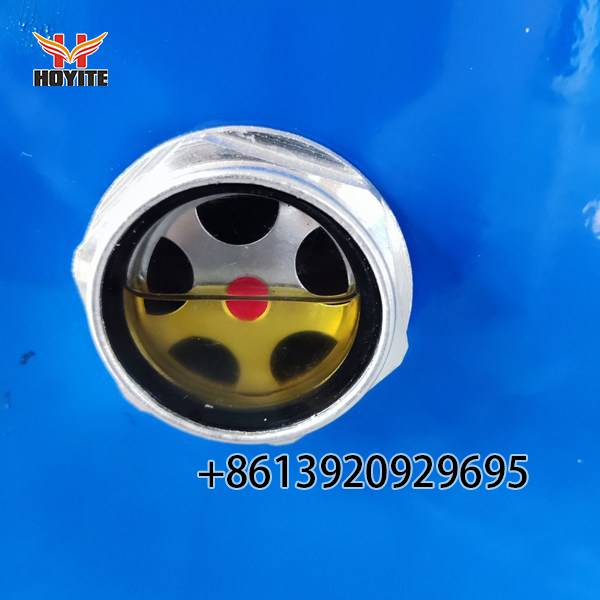

Upon receiving the machine, first inspect the outer packaging for damage; if there is none, you may proceed to unpack it. Next, fill the machine with #46 hydraulic oil. Refer to the position of the oil level sight glass shown in the image below to determine the correct fill level.

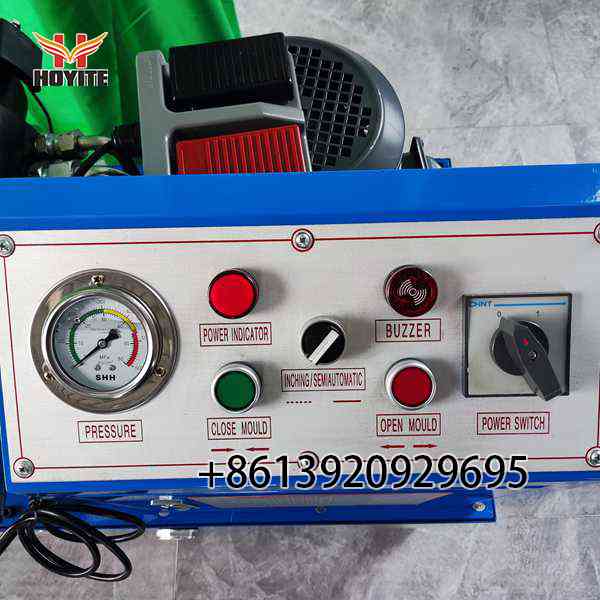

As shown in the image, this system is operated via push-buttons and features both manual and semi-automatic modes. In manual mode, pressing and holding the "close mould" button causes the mold to move forward to close; releasing the button stops the movement. Similarly, pressing the "open mould" button causes the mold to move backward—or "open."
Built for Heavy-Duty Reliability Across Key Applications
Constructed with high-rigidity forged steel heads and heat-treated master dies, this hydraulic hose press machine delivers zero-leakage crimps across diverse industrial applications:
- Hydraulic Repair Workshops: Fast turnaround on 2-wire and 4-wire high-pressure excavator and loader oil hoses.
- Agricultural Machinery Maintenance: Reliable crimping for tractor steering, loader hydraulics, and irrigation lines.
- Industrial OEM Lines: Consistent crimp outer diameters (COD) for factory-assembled fluid power systems.
Why Source Directly from HOYITE Manufacturing?
As a direct manufacturer with deep expertise in hydraulic hose processing equipment, HOYITE provides more than just machinery—we deliver long-term industrial reliability. Every hydraulic hose press machine undergoes 100% full-load pressure testing before dispatch, ensuring precise calibration right out of the crate.
- Direct Factory Pricing: Cut out middleman markups and maximize ROI on workshop equipment.
- Comprehensive Die Sets Included: Shipped with a full range of standard master dies to handle common hose sizes immediately.
- Global Technical Support & Spare Parts: Lifetime technical guidance, rapid spare parts shipping, and multi-language user manuals.
