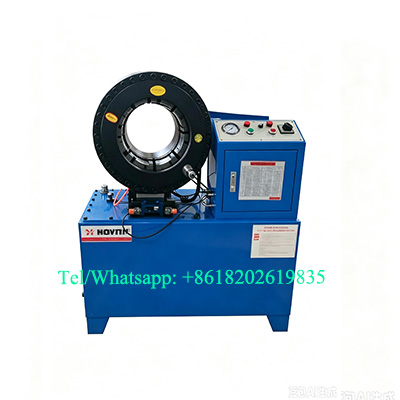

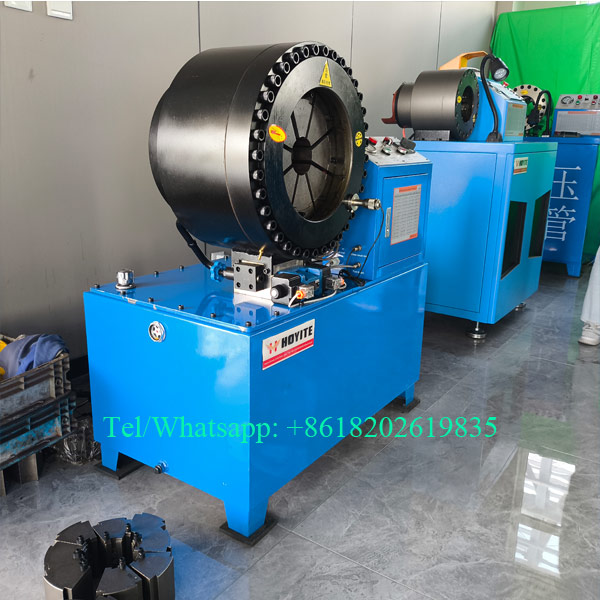

HYT-150L 6 Inch 6S Hydraulic Hose Crimping Machine — Crimping range from 1/4" to 6" 6S, supplied with 19 sets of standard dies. Designed for large-diameter hydraulic hose assembly, repair, and heavy-duty workshop production.
In Stock & Ready to Ship | Fast Order Processing | Global Delivery
The HYT-150L 6 inch 6S hydraulic hose crimping machine is designed for large-diameter hydraulic hose assembly, repair, and production. With a crimping range from 1/4" to 6" (6–153 mm), it can handle a wide range of hose sizes, including large-bore 6S hydraulic hose.
With a maximum crimping force of 2500 tons, a 31.5 MPa hydraulic system, and an opening of up to 235 mm without dies, the HYT-150L provides the working capacity required for heavy-duty hose assembly applications.
The HYT-150L is built for applications where a standard 2" or 3" hose crimper is not sufficient. Its 6" crimping capacity makes it suitable for large hydraulic hose assemblies used in heavy equipment, industrial machinery, mining equipment, and other high-flow hydraulic systems.
The large working opening also makes it easier to position larger hose assemblies and fittings during the crimping process.
The HYT-150L covers hose sizes from 1/4" to 6" 6S, providing one machine for both smaller and large-diameter hydraulic hose work.
This wide range can help hose workshops handle different hose sizes without needing separate crimping machines for each size group.
The machine is equipped with a maximum crimping force of 2500 tons and a hydraulic system pressure of 31.5 MPa.
This high-capacity hydraulic system is designed for demanding large-diameter hose crimping operations and provides the force needed for heavy-duty hose and fitting assemblies.

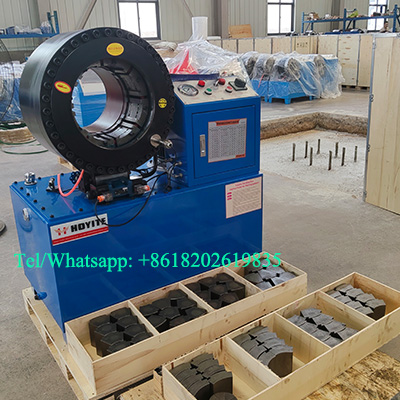

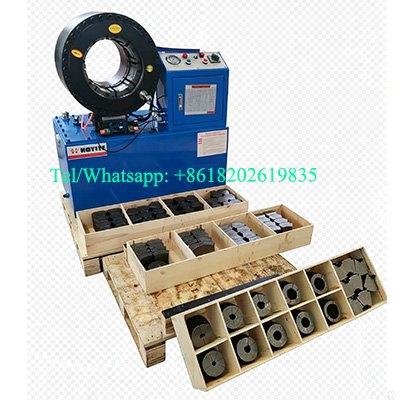

The HYT-150L is supplied with 19 sets of dies, covering a wide range of crimping sizes.
The standard die sizes include:
12, 15, 19, 23, 26, 31, 36, 41, 47, 55, 63, 75, 87, 100, 115, 130, 145, 160, 175 mm
The dies are supplied in different working lengths according to the crimping size, helping accommodate both standard and large-diameter hose assemblies.

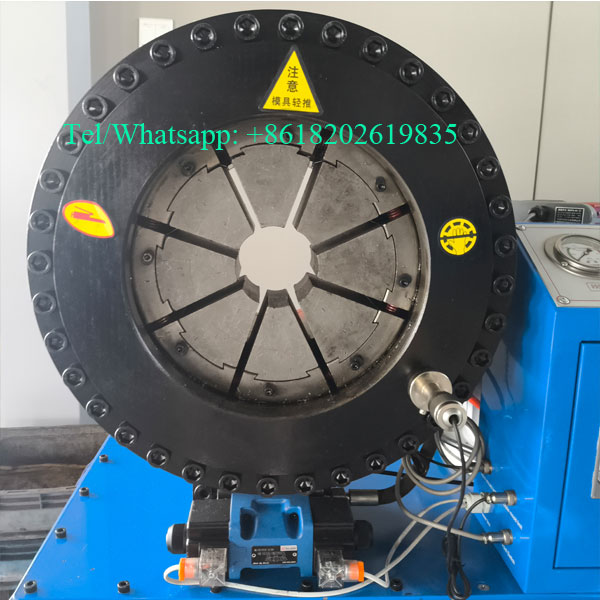

With an opening of up to 235 mm without dies, the HYT-150L provides generous working space for positioning large hoses and fittings.
This is particularly useful when working with large-bore hose assemblies where additional working clearance is required.
The HYT-150L combines a large crimping range, high crimping force, and multiple die sizes in one machine.
It can be used in:
Hydraulic hose assembly workshops
Hydraulic hose repair centers
Mining equipment maintenance
Construction machinery service
Industrial hydraulic systems
Heavy equipment maintenance
Large-diameter hose production
Hydraulic hose replacement and repair

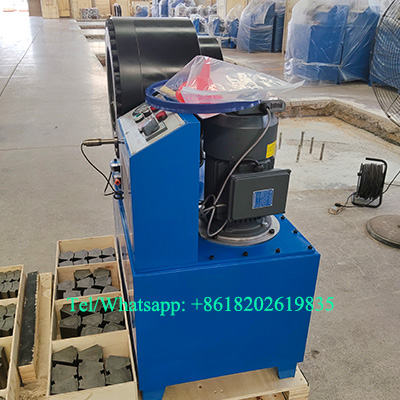

The HYT-150L is available with a 3-phase 380V power supply and a 4 kW or 5.5 kW motor configuration, depending on the required setup.
Please confirm the required voltage, frequency, and motor configuration before ordering.
| Specification | HYT-150L |
|---|---|
| Model | HYT-150L |
| Product Type | 6 Inch 6S Hydraulic Hose Crimping Machine |
| Crimping Range | 1/4"–6" 6S (6–153 mm) |
| Maximum Crimping Force | 2500T |
| System Pressure | 31.5 MPa |
| Opening Without Dies | 235 mm |
| Motor Power | 4 kW / 5.5 kW |
| Voltage | 3 Phase – 380V |
| Hydraulic Oil Tank | 160 L |
| Standard Dies | 19 Sets |
| Machine Size | 91 × 59 × 121 cm |
| Net Weight | 850 kg / 1874 lb |
6" 6S crimping capacity for large-diameter hydraulic hose
2500-ton maximum crimping force
19 sets of dies included
235 mm opening without dies
Suitable for large hydraulic hose assembly and repair
Designed for heavy-duty workshop and industrial applications
Wide crimping range from 1/4" to 6"
The HYT-150L has a crimping range from 1/4" to 6" 6S (6–153 mm).
The machine is supplied with 19 sets of standard dies, covering sizes from 12 mm to 175 mm.
The maximum crimping force is 2500 tons with a system pressure of 31.5 MPa.
Yes. The machine is specifically designed to handle large-diameter hydraulic hose, with a maximum crimping range of 6" 6S.
The standard configuration uses 3-phase 380V power, with 4 kW or 5.5 kW motor options.
For smaller hose sizes, explore the HYT-51G 2 inch hydraulic hose crimping machine and HYT-103B 3 inch hydraulic hose crimping machine.
For large-diameter hydraulic hose assembly up to 6", the HYT-150L provides a high-capacity solution with 19 die sets and 2500-ton crimping force.
