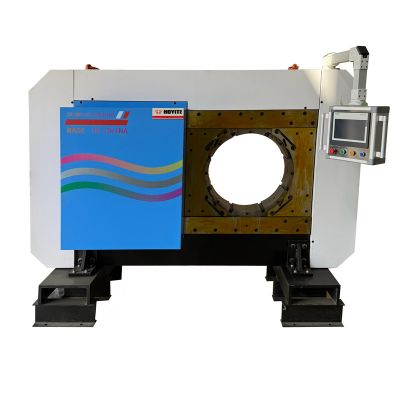

HYT-H150 Button type 3" to 6" hyd hose crimping machine

HYT-H150 Button type 3" to 6" hyd hose crimping machine

Hydraulic hose crimping machine 6’’HYT-H150 is crimping hoses from 3" to 6". It can also crimp the hose below 3" . But as a machine which crimp sizes from 3” to 6“ , it is harmful to crimp small sizes of hoses. HYT-H150 is equipped with 4 sets of dies which is designed to customers‘s requirement. As each die is heavy, when putting on or taking off a set of dies, it could not be helped with a quick changing tool but should be a manual working.HYT-H150  is a computer system controlled machine and is a powerful machine.

The advantage of HYT-H150 hyd hose crimping machine

★ Self lubricating moving components

★ CNC processed machine head

★ Intelligent operating system

★ Reinforced crimping system,available for volume production

★ Precision polished high-speed steel dies

Technical parameter of HYT-H150 hyd hose crimping machine

Crimping range:3"-6"

Motor: 5.5kw

Max opening without dies: Φ270mm

Opening: ≥ 38mm

No. of die sets: 4 sets

Systematic pressure: 30Mpa

Weight: 1080 kgs

Machine L*W*H: 1250*940*970(mm)

Gross weight: 1200KGS

Volume: 122cm x 92cm x 132cm

HYT-H150 crimping hydraulic hose, suction hose and composite pipe up to  6 inch, other stainless steel pipe or special pipes are also available.

Additional Information:

Paymets Terms: T/T ( Bank transfer ), Western Union, Paypal , Credit Card, Online pay etc.

Port of Dispatch: Tianjin

Production Capacity: 200 sets per month

Delivery Time: 7~10days

E-mail vitty@hythosecrimpingmachine.com

Tel/Wechat/WhatsApp: +8618202619835
