TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Model: HYT-12V
Voltage: 12V
crimps up to 2" hydraulic hose

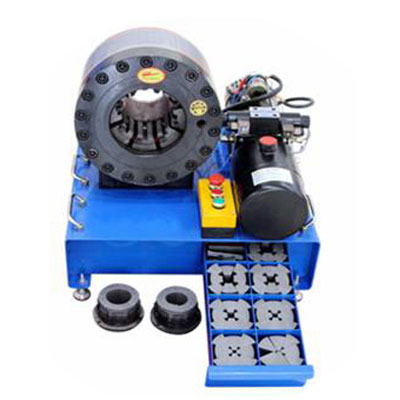

HYT-12V electric 12 Volt crimping machine is an ideal choice for service vehicles. This machine produces very efficient and accurate crimping results.
* Crimping Range - Up to 87mm
* 300 tons of crimping force
* Hose size up to 2 inch
Technical Parameter:
| Hose size that it can crimp: | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1, 1-1/2″ & 2″ in 1,2 and 4 braid |
| Max open: | 114mm |
| Crimping Force: | 300 ton |
| Motor: | 1.6kw |
| Voltage: | 12V |
| Scale accuracy: | 0.01mm |
| Volume of oil tank: | 4 Litres |
| Dies: | 10 Sets, 15, 19, 23, 26, 31, 36, 41, 47, 55 & 60 |
| Overall Dimensions: |
75cm x 63cm x 65cm |
| Weight: | 190kgs |
electric 12 Volt crimping machine Portable Hydraulic Hose Crimping machine Made in China to very high standards of quality and reliability.
Designed to crimp Hydraulic Hoses in the horizontally position this unit comes standard with 10 sets of dies. These standard dies will give you the range to crimp from 6mm up to 54 mm, which covers from 1/4" Inside Diameter (ID) hose up to 2" ID 4 wire Hose.
HYT-12V electric 12 Volt crimping machine needs a minimum of 105AH-150AMP deep cycle battery to operate this machine under load.
This machine Produces up to 137 ton of crimping force
Will Crimp up to 200 fittings per times an hour.
Simple to use 12v / 24v powered Hydraulic Crimper, ideal for both your workshop or service Vehicle. Capable of doing multiple crimps with little effort.
12 Volt crimping machine package: wooden case
Usuage instruction of HYT-12V crimping machine
1.Motor start:Pay attention to the direction of rotation of the motor and pump rotation direction or arrow direction.
2.Before the operation:Check the hydraulic oil tank .
3.Normal operation:For the first 30 minutes please do the running after normally begin to use the machine
4.Hydraulic oil:No any regulation for oil spill valve,the highest pressure must not exceed the rated pressure .Pressure
hazard!Danger of injury.
5.System failure:If system failure happen,do not blindly process.Please in accordance with the operation manual or sequence analysis to deal with the problems or find professional repair engineer to solve problems.
Additional Information:
Paymets Terms: T/T ( Bank transfer ), Western Union, Paypal , Credit Card, Online pay etc.
Port of Dispatch: Tianjin
Delivery method: wooden case package ; By sea to any port .
Delivery Time: 7~10days
